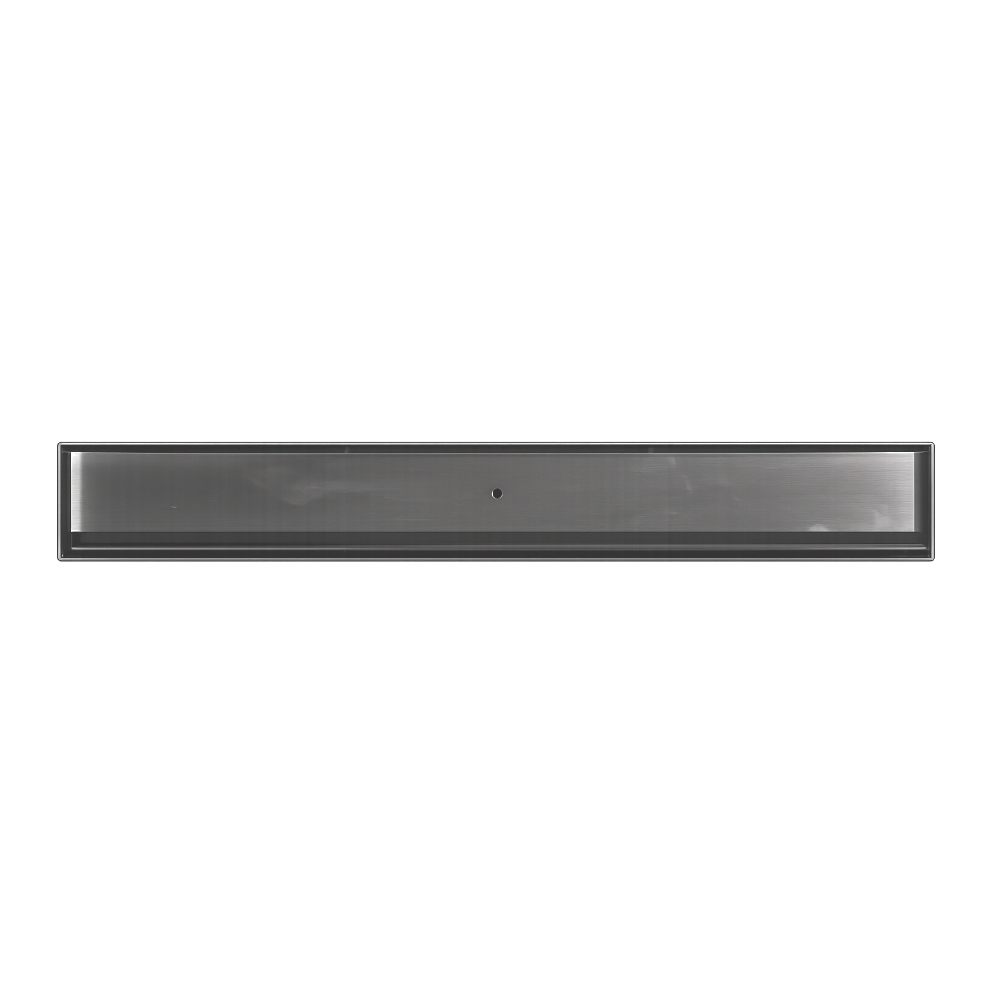

Neston Linear Tile Insert Drain Stainless Steel Kit 1000mm
A$299.00
Manufactured From 316 Stainless Steel
105mm W x 24mm D x 1000mm
Complete With Loose End Caps for channel and tile insert tray, Loose Outlet, Fully customised to suit length and outlet position on site.
Tile Insert Tray - Suits Up To 10mm
V Bottom Channel for an overall better performance in flow rate and cleaning.
24mm Deep Channel.
Brushed Stainless Steel Finish
Watermarked Approved
Outlet Sizes Available
DN100 (89mm) (NS105TI24SS-1000DN100)
DN80 (76mm) (NS105TI24SS-1000DN80)
DN40 (38mm) (NS105TI24SS-1000DN40) Suits 50mm outlet pipe where a puddle flange with a 40mm internal throat diameter.
This product can be cut to size and install the outlet position by drilling the outlet hole using a hole saw and attached the loose outlet into position using Sifaflex 11FC adhesive or similar. Loose end caps for channel and tile insert tray are provided in the kit.
