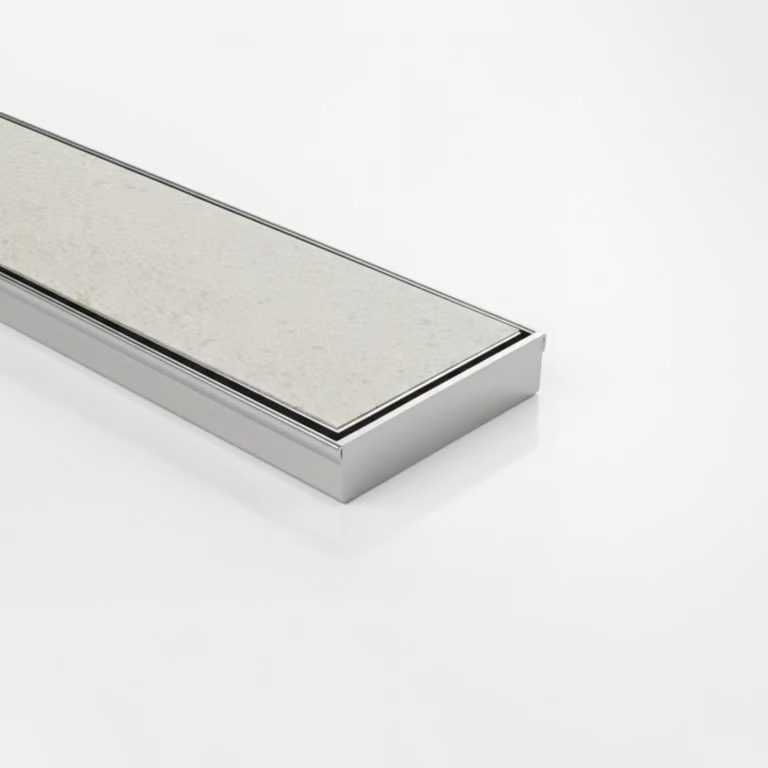

Neston Linear Tile Insert Grate Stainless Steel Kit 800mm
A$269.00
Manufactured From 316 Stainless Steel
Brushed Stainless Steel Finish
105mm W x 24mm D x 800mm
Complete With Loose End Caps, Loose Outlet
Fully Customisable On Site.
Tile Insert Tray - Suits Up To 10mm
2mm Folded Channel Edge
V Bottom Channel for better flow and discharge.
Watermarked Approved
Outlet Sizes Available
DN100 (89mm) (NS105TI23SS-800DN100)
DN80 (76mm) (NS105TI23SS-800DN80)
DN40 (38mm) (NS105TI23SS-800DN40)
This product is sold as a kit form, meaning the installation of the end caps and outlet to the channel is conducted by a licensed plumber. Hole saw for the outlet is not included with the kit.
The channel and tile insert tray can be cut down to a specific length on site. Select the correct size loose outlet needed for the application
This product can be cut to size and install the outlet position by drilling the outlet hole using a hole saw and attached the loose outlet into position using Sifaflex 11FC adhesive or similar. Loose end caps for channel and tile insert tray are provided in the kit.
