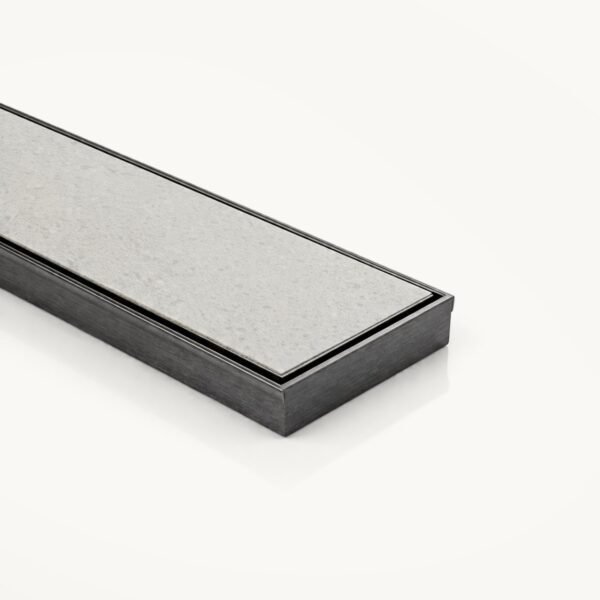

Neston Linear Tile Insert Drain Gun Metal 1200mm Kit

• Manufactured from 316 Stainless Steel

• 1200mm x 105mm x 24mm Deep

• Suits Up to 10mm Floor Tile

• PVD Gun Metal Finish

• Can be cut down to size, adjustable outlet position with loose outlet and loose end caps

• V Bottom Channel for an overall better performance in flow rate and cleaning.

• WaterMark Approved

Outlet Sizes Available

DN100 (89mm) (NS105TI24GM-1200DN100)

DN80 (76mm) (NS105TI24GM-1200DN80)

DN40 (38mm) (NS105TI24GM-1200DN40)

Additional Information

This product can be cut to size and install the outlet position by drilling the outlet hole using a hole saw and attached the loose outlet into position using Sikaflex 11FC adhesive or similar. Loose end caps for channel and tile insert tray are provided in the kit.
